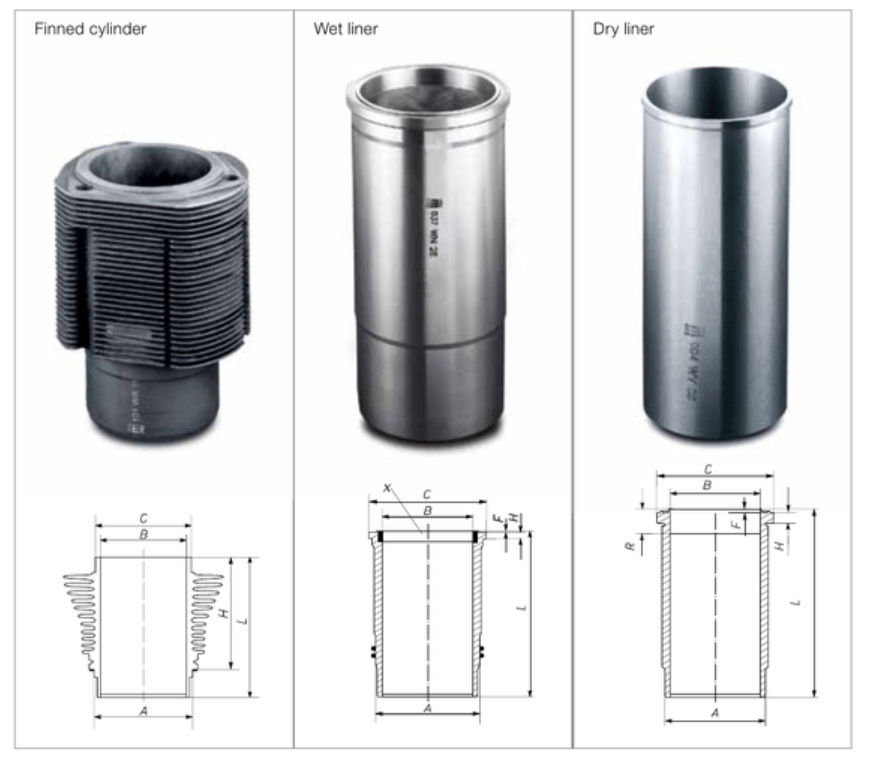

How Cylinder Sleeves are Used in Other Industrial Components


Iron sleeves give a wear-resistant surface for the piston rings, and they don’t have to be very thick because they are supported by the surrounding block.

Cast iron blocks, by comparison, don’t need cylinder sleeves because the iron is very hard to resist ring wear. If a cylinder is broken, damaged or worn to the point where it can’t be reconditioned by boring or honing to oversize (because the casting is too thin), installing a press-fit dry sleeve can often save the block.

When a dry sleeve is installed in an iron block, a definite amount of interference fit is usually required to retain the sleeve and prevent it from slipping. Iron sleeves have the same coefficient of growth as the block, so typically require only about .0015% to .002% of involvement to lock a sleeve in place. Aluminum has a much higher coefficient of thermal expansion than iron, so the block tends to pull away from the sleeve when it gets hot. Consequently, more interference fit is usually required when an iron dry sleeve is installed in an aluminum block, say .003% to .004%.

Mike Walsh of Melling says his company now makes flanged dry sleeves for GM’s new Ecotec engines. These are a drop-in replacement that no need of interference fit. Melling creates sleeves for a wide range of automotive, truck and small engine applications using a centrifugal casting process, which Walsh says results in higher strength and tolerances that are exact to within one half of one-thousandth of an inch. Other new applications contain dry sleeves for GM LS1/LS6 (1997-2004), Ford 2.0L (1997 & up), and Lexus 4.3L 3UZFE engines in 2005-2006 models. New heavy-duty sleeve applications contain CAT 3116 and CAT C-7 3126 engines.

Round And Straight

Whether a cylinder sleeves is being installed in an aluminum or iron block, dimensional accuracy is an absolute must. The cylinders in the block should be machined as round and straight for a good fit. Concentricity of the bores is very important to minimize bore bend. Likewise, the sleeves must be manufactured to testing tolerances if they are going to fit properly. If the block or sleeves have too many different types, it can distort the cylinder bore and adversely affect ring seating and sealing, compression, blowby, oil consumption, and emissions. Severe bore bend may even cause piston scuffing if the clearance between the piston and wall is insufficient.

Read More Related This :

Auto parts Exporters Use modern auto desgins for efficent and quality products. The auto parts exporters comfort the users with their amazing fits and trendy designs.


What You Need to Follow When You Are Replacing Cylinder Head Valve: Steps To Follow

Cylinder head slave is one of the crucial parts of the engine and replacing it is one of the hassle-filled works to do. The thing gets twister when you are doing it on your own as there are lots of things that you need to see and to focus while performing it. Valve seat inserts are another thing that plays the vital role; it’s a combusting chamber that found on the head of the cylinder. It helps in preventing things like burying the valve on the cylinder head. Apart from this, there is lots of stuff that you need to understand as it will keep the complete process simpler and easier for you.


What to know and how to do it: everything that you must know

Before you start the process, it’s important to understand the basic and to gather information related to Valve seat inserts like stuff. Well, for knowing further here are the points that you need to follow:-

  • Start with why you need to replace it?

Well, go with the first yet crucial step. Understand why you are replacing the cylinder head valve at first place? Knowing the reason help you to find the solution much simpler and also prevent it in future. There are the different reasons like maybe the seat need to replace because of it gets worn to crack that occur further issues in future. In such situation, if you have no other option instated of replacing it.

  • How to start removing the seat?

When you are doing the complete process make sure you don’t rush. Start with stripping the engine and remove the head of the cylinder. Don’t forget to remove rocker arms as well. The taking off process depends on the vehicle you own, however it is suggested to take your time while doing that. Try to punch valve ports but avoid doing it too much as counterbore might get damage.

  • Know about Machining and Replace it

After removing the head look if counter bore is going to require machining for a new head or not. You should go through this process with the professionals only. As only minimal machining is needed for the process and that is hard for the newbies. It also requires complete tool and knowledge to perfume this step without damaging it.

For replacing cylinder head, make sure you are using the quality one as the perfume varies on the quality of valve head. For knowing better ask the professionals and find the best one in the budget of yours.

  • Install it

Your last process is installing the new one; however, make sure that the installing process is done smoothly without damaging or making the surface rough. Also if there are any sharp points, make sure you to remove it before it damage the head in future.

Read More Related This :

Cylinder Liners are used in engines to protect as well as to improve the work without creating any kind of a hassle for the rest of the vehicle. Liners are known by various names in different parts of the globe, for example, these liners are known as cylinder sleeves as well.

Why Cast Iron is Used For Constructing Building Structures?

Metal industry extracts the cast iron from pig iron by melting it with coke and limestone. Pig iron is a raw impure iron which is obtained from the iron ore. Cast iron bars and other parts are used for several application including building structures, sanitary fittings, casting molds, chairs, etc.


How cast iron is made?

Manufacturers re-melt the cast iron inside the couple furnace. This type of furnace has a height of 5 meters and shaped cylindrical with 1 meter diameter. They include three raw materials for preparation of cast iron –

  • Pig iron
  • Limestone
  • Coke

All of these three materials are entered from the charging door of the chamber at the top. Through air blast inlet, air blast is introduced that eliminates the contaminants present in the pig iron. The purified cast iron is passed through the bottom outlet and then poured into shaping molds. Professionals name these molds as cast iron castings.

Do you know? There are over 5 types of cast iron used by construction industry as building material. Let’s learn about them-

   1. Grey cast iron – Grey colored cast iron has coarse crystalline structure. The melting of grey cast iron is lower and this is why it has poor strength properties. Professionals working in construction sector use this cast iron type for casting purposes only.

    2. Malleable cast iron – Malleability is among other properties that allow the materials to mold in any shape without cracking or breaking. Malleable cast iron possesses good malleability properties which make them suitable for making distinct types of materials. The metal has good corrosive resistance.

Malleable cast iron manufacturing is a two-step process that includes-

  • It is casted and cooled normally as a usual cast iron
  • It is then heated to 1050 degrees Celsius and soaked in water for several hours or days.

This process helps in making cast iron less brittle. This type of cast iron is used for making fastenings, pipe fittings, automobiles, etc.

   3. Mottled cast iron – This cast iron type has mix properties of grey cast iron and white cast iron. Mottled cast iron contains small amount of graphite in its composition.

   4. Toughened cast iron – This cast iron type is the combo of cast iron and wrought iron.

   5. White cast iron – It has silver color and high melting point. This cast iron type is heavy in weight and cannot be used often.

   6. Ductile cast iron – This cast iron type is also known by the name of spheroidal graphite iron. The manufacturing process involves manganese treatment that enhances the carbon content and prevents development of flaky graphite.

Among all the cast iron types, ductile iron is vastly used due to its great corrosion resistance, high strength, and durability. Manufacturing companies use ductile iron to produce sewer pipes, water conveying pipes, etc. They also provide cast iron bars to construction sector for building structures and other projects.

Read More Related This :

There is no place on earth where we cannot find metal. We use metal in our everyday lives, from our cutlery to gadgets and computers, everything includes metal. In this post, cast iron bars suppliers will talk about recycling of metals and how it made the operation easy for others.

Components Complete The Design Of Diesel Engine

There is a list of components that diesel engine parts manufacturers produce to complete the design of diesel engine. The compression system has the parts that develop engine compression and let the heat energy move inside the burning air-fuel mixture to transform into mechanical energy. In this post, we will discuss about these parts in detail.


  • Engine block –

    Engine block is the basic support and connecting point for all other engine parts. Manufacturers produce engine blocks by pouring molten cast iron, steel, or aluminium into the molds. They wait until the metal cools down. They wash out the molding sand and machine the block in order to install other parts. Major parts installed on the block are the crankshaft, pistons, cylinder heads, camshaft, and manifolds.

  • Pistons –

    it transfers the force of expanding combustion gases to the adjacent rods. Pistons are manufactured with aluminium for lightweight construction. Mostly manufacturers design automotive pistons with two compression rings and one oil ring. Compression rings are installed at the top of the piston.

  • Crankshaft and connecting rods-

    Manufacturers use forged steel to make connecting rods, which are used to connect the piston to the crankshaft. Each connecting rod is connected to a piston through piston pin. The manufacturers design the crankshaft in such way that it rotates inside of the bearings with least friction.

  • Cylinder heads –

    It includes a combustion chamber for each cylinder and creates the top of the cylinder. Cylinder heads have the intake and exhaust valves and sometimes lifters and camshaft as well. Manufacturers design cylinder heads with cast iron or aluminium.

  • Push rods-

    these components are used on cam-in-block engines only. They convey the lifter motion to the rocker arm. Most of the push rods are hollow.

  • Vibration damper-

    When the engine cylinders ignite, the force is conveyed to the crankshaft. When such force hits the vibration damper, part of the crankshaft rotates before the rest of the crankshaft. This results in crankshaft twisting. When the force is removed, the partially twisted shaft unwinds and such action results in torsional vibration.

  • Cooling system –

    Cooling system includes various components that expel unwanted engine heat and regulate engine temperature. Cooling system is required because it is not possible to eliminate all of the heat created by combustion.

You can replace or restore these components with the help of experts. Diesel engine parts manufacturers are offering maintenance and cleaning services for diesel engine oil to their customers.

Why Piston Rings Are Good For Engine?

Obviously, motorcycles are used y almost everyone and they are good for daily requirements and transportation. After few years, there is requirement to replace certain motor parts to improve its overall working. One of essential requirements is Piston rings to accelerate overall performance of engine.


More than 80 percent of users don’t know about piston rings and how it work. But they are one of the most important parts of bike’s engine and need to change frequently. This is the reason why we have written this write up to aware you about piston rings working and its technicalities.

Piston is used to produce power when fuel is burnt. Piston should not come in contact with cylinder heads otherwise it would increase metal friction and wear down quickly. When cylinder head and piston comes in contact together, performance start degrading over time and it does not matter which type of lubrication you have used actually. This is the reason why piston rings were manufactured to maintain the gap cylinder head and piston.

They are not expensive but really important to regulate overall functioning of the engine. When rings are not used or serviced regularly then motorcycle would not perform at its optimum level and it may damage over time. Piston is also used to dissipate heat from engine and cylinder walls. They have excellent heat carrying capacity and good elasticity. In case, heat would not be released from cylinder walls then entire pressure would fall on the engine and it may damage the bike.

The above discussion makes it clear that whenever anything goes wrong, piston rings take care of it and protect piston from unwanted damage. They are easily available with leading suppliers and manufacturers in India at low prices. You just have to search for right exporters in your area.

Read More Related This :

Auto parts sector has huge potential for growth and chances of success are also high. Automotive industry is growing at a faster rate worldwide and this is taken as attractive business option for customers.

Offset Pins in Pistons and Their Uses

There are piston pins manufacturers making and supplying some pistons with offset gudgeon pins. This is to help lower piston “slap” and consist a pin that is offset to the thrust side. Race pistons are different from the central pin design. Most engines today use pistons with an offset piston pins bore. Pin bore is moved a specific distance from the piston centerline.


In the gas engines, the offset is always to the piston’s thrust. The piston thrust side is perpendicular to the pin bore that carries major side loading during the power stroke. The main reason for pin offset is to prevent the piston from slamming into the cylinder bore once the rod connected passes top dead centre.

Latest designs of engine pistons are different as they are not mounted on their connecting rods on centre. They are rather offset, i.e. perpendicular to their rotary axis.

The piston engine has three major parts – connecting rod, crankshaft, and piston. Each part is made for different function. The connecting rod is just a part in the middle that translates the reciprocating motion of the piston into the crankshaft rotary motion.
In the process, connecting rod shares in the motion of both.

Why It Is Important To Replace Piston Rings?

Reason behind offsetting of the piston pin is that it softens reciprocal loading, letting lighter and robust parts to be used, and make engines capable of higher rpm. Since the connecting rod spends most of the time in the engine at an angle, the piston engine has the minor and major thrust. Major thrust is the downward-stroking force of the piston against the cylinder wall during combustion. Minor thrust is the thrust of the piston against opposite cylinder wall during compression. Both of these thrust forces push the piston firmly against the wall of cylinder.

Auto parts manufacturing units are supplying piston pins to the global clients. The entire market of automotive parts and spares is growing every year. More auto spares stores are going online to gain more customers and opportunities. Ecommerce site owners in automotive sector are making every effort to reach to their global clients. They are finding ways to promote their products like piston pins and rings and valves online. You can make online research and find reliable suppliers in your town. Many of them are also dealing in used spares. You can pick the vendor accordingly.

Read More Related This :

Manufacturers producing cylinder liners and sleeves are using two distinct types of lubrication for journal bearings and crosshead bearings employed in marine diesel engines.

Is The Driverless Car A Future Of Indian Automobile Industry?

Technology is pressurizing automobile parts India industry. Digital life and driverless cars are widely looking to disrupt automobile industry that has resisted change on the scale that had been seen by several other sectors. Consumers have desire to access media consumption and navigation within the car just like they access on their smartpones and this makes digital a key determinant of the consumer purchase decision.


 The manufacturers auto parts India that get it right will charge a premium for their range of products, and those who fail to determine and heed the warnings will endure lower market shares and margins.

The rise of digital car

Since digital ecosystems view the car as just next way to provide their experiences to users, OEMs are little worried as if users define their digital experience in car by Google or Apple, then OEMs will not be able to differentiate their own products. This will make their lives tougher and they will feel difficult to survive in highly competitive market. OEMs or original equipment manufacturers are not prepared yet for this new threat.

There are many losses that the automobile industry will have to encounter in numerous ways. By connecting vehicle attributes with digital attributes, automobile manufacturers will have new opportunity to increase loyalty of their customers when it is about follow-on purchases.

Country India Can Bring You Low-Priced Automobile Parts – How?

 How can OEMs survive? What should be done?

For survival, OEMs need to desist from offering these services in their infotainment systems and make investments in their own ecosystem. These companies should deliver the digital life services that the user enjoys on smart devices in a way that it is optimized for the automobile.

OEMs should take a technical step i.e. they should enable OTA updates for their automobiles. There are many process issues that need to be solved to make this a reality but experts believe that this is important. Without OTA updates, engineers won’t be able to fix software bugs, and also they will not be able to update and enhance their offerings.

Jai Liners are leading suppliers and exporters of automobile parts India. They have complete range of auto spares and components which are not easily available at many shops. They have all limited stock of auto parts and they offer their range at competitive rates. In short, you can trust the name Jai Liner and avail the best deal in your town today.
